28 Meter Boom Lift

Info@skyaccess.ae
sales@skyaccess.ae

Email address

Category Boom Lift Tags 28 meter boom lift, boom lift

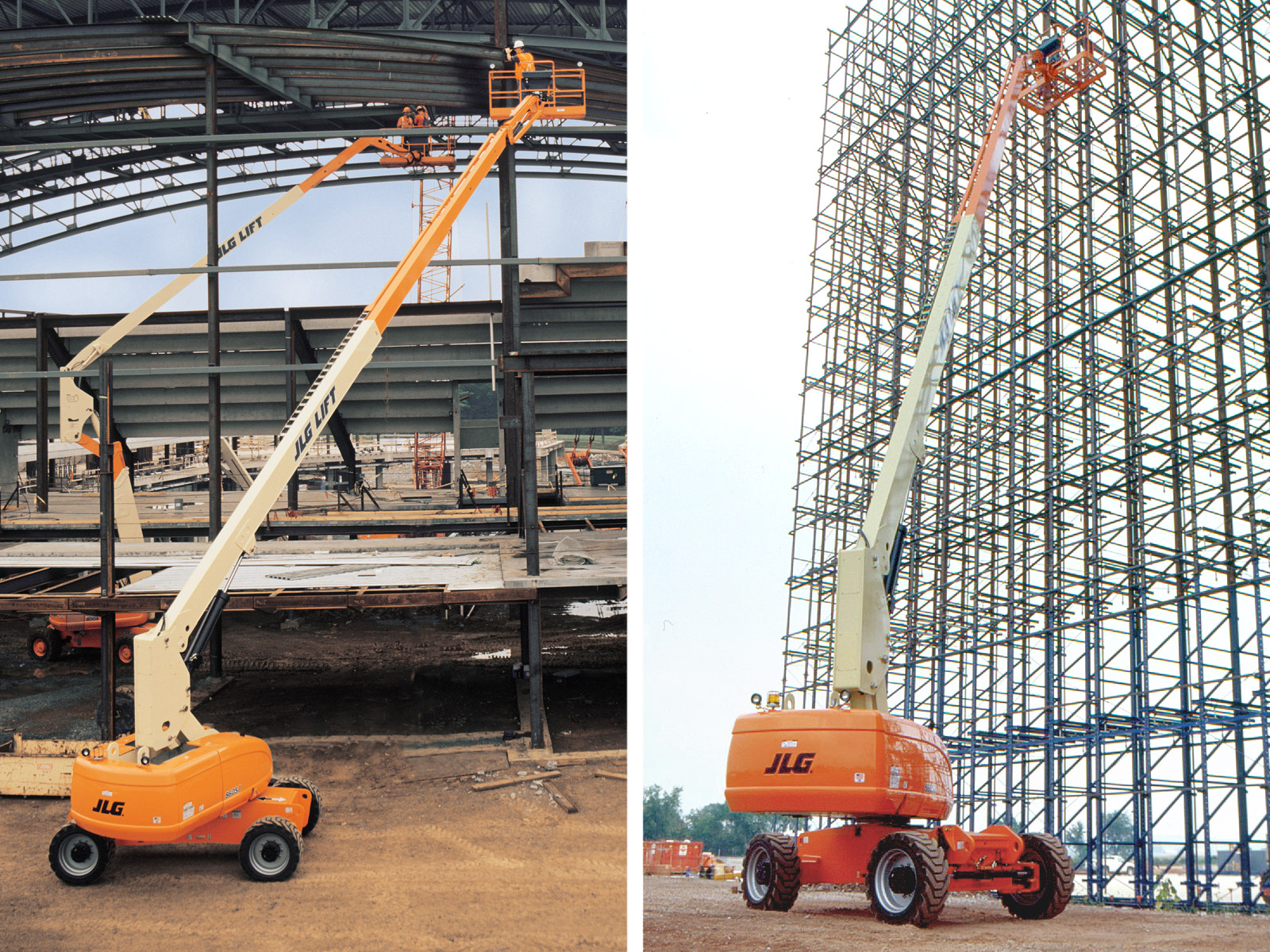

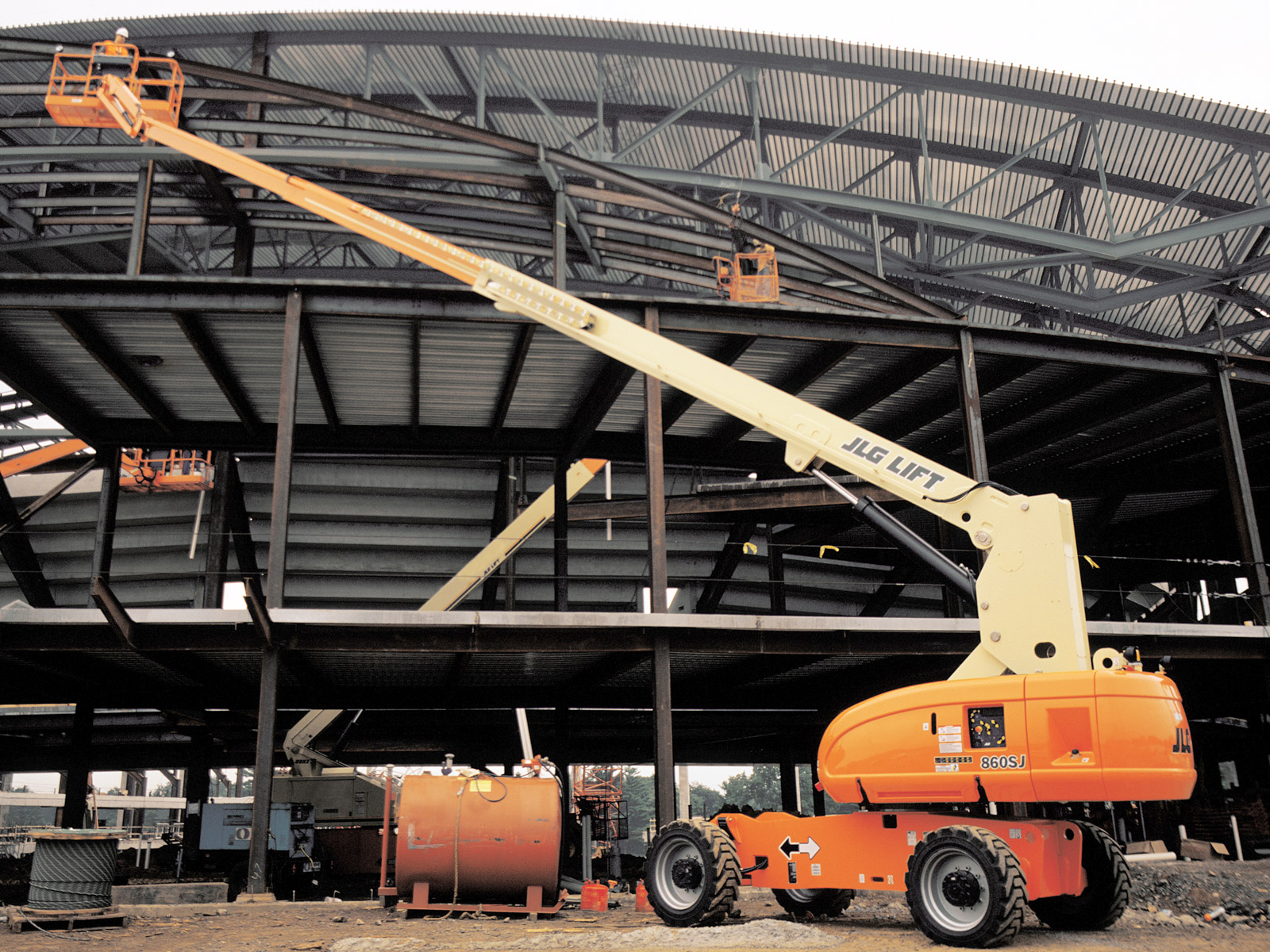

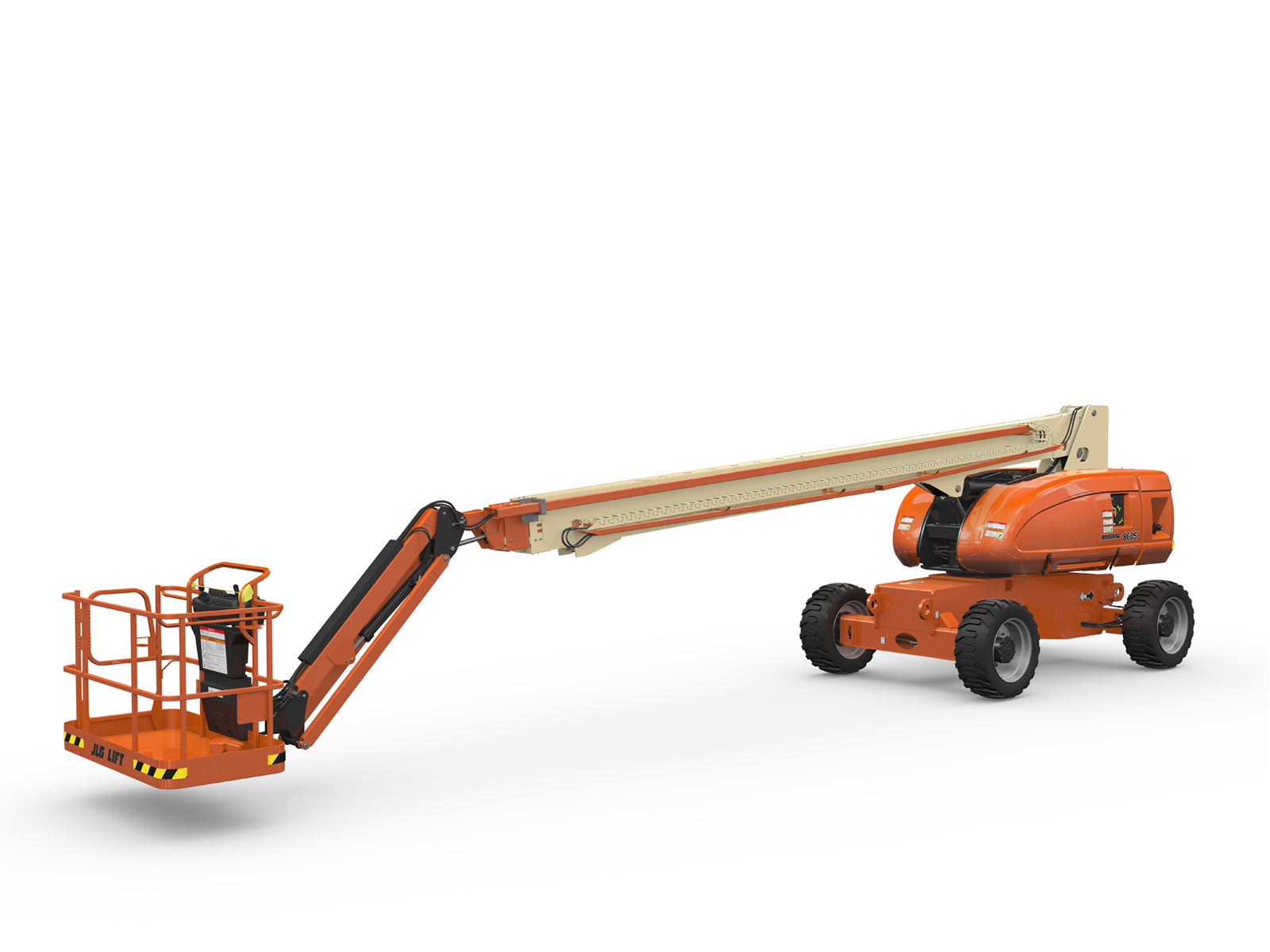

Brand: JLG 860 SJ

• Working Height 28.21 m
• Platform Height 26.21 m
• Horizontal Outreach 22.86 m
• Working Outreach ** 23.51 m
• Swing (Continuous) 360°
• Platform Capacity – Restricted 340 kg
• Platform Capacity – Unrestricted 230 kg

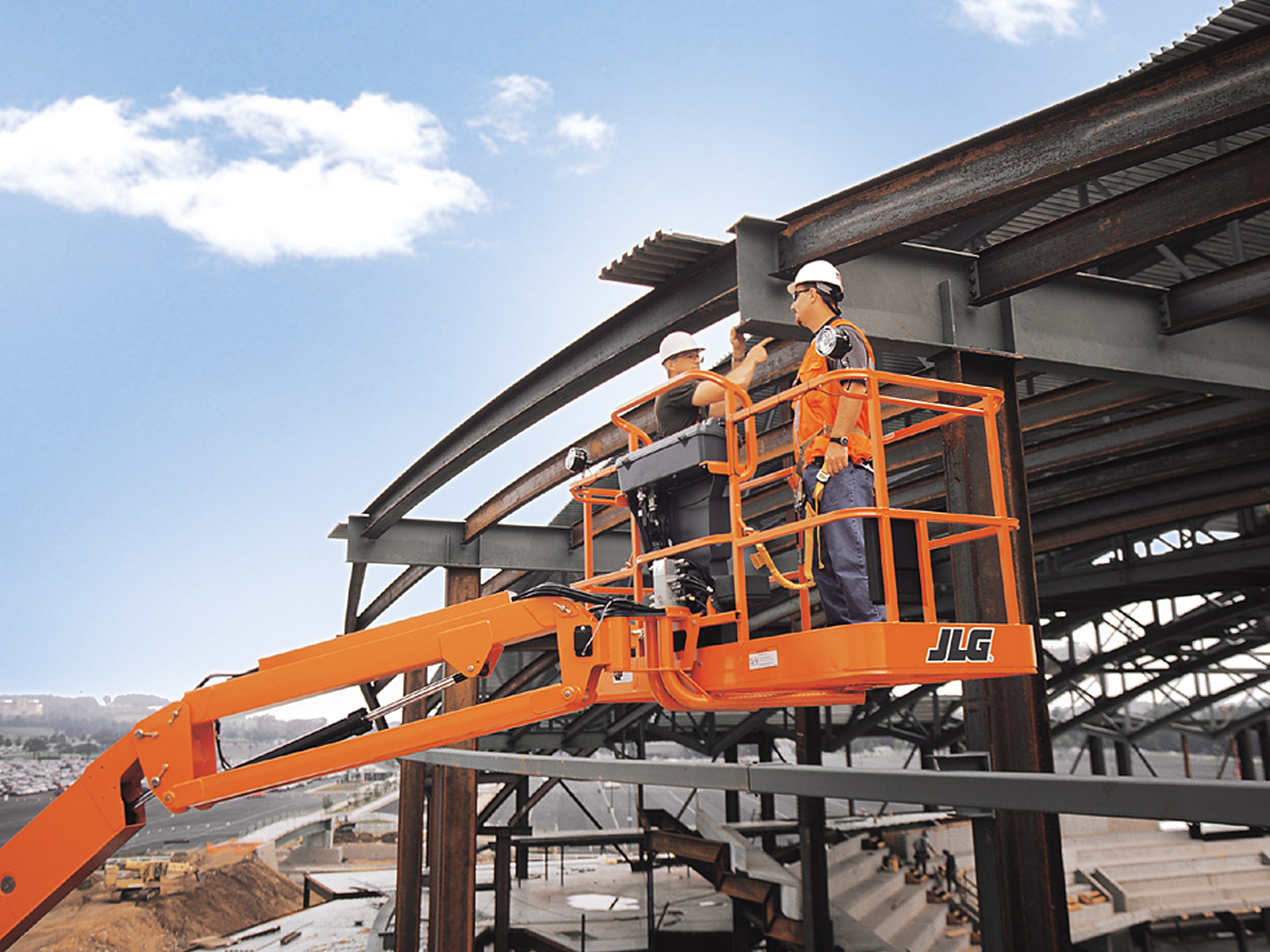

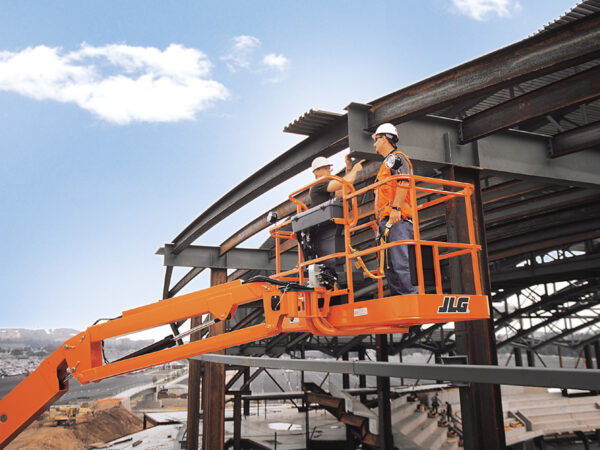

• Platform Rotator (Hydraulic) 180°
• Jib – Overall Length 1.83 m
• Jib – Range of articulation 130° (+70°/-60°)
A. Platform Size 0.92 m x 2.44 m
B. Overall Width 2.49 m
C. Tailswing (working condition) 1.42 m
D. Stowed Height 3.05 m
E. Stowed Length 12.2 m
F. Wheelbase 3.06 m
G. Ground Clearance 0.28 m
• Machine weight * 16,732 kg
• Maximum Ground Bearing Pressure 5.69 kg/cm2
• Maximum Tyre Load 9163 kg
• Drive Speed 2WD 5.6 km/h
• Drive Speed 4WD 5.6 km/h
• Gradeability 2WD 25%
• Gradeability 4WD 45%

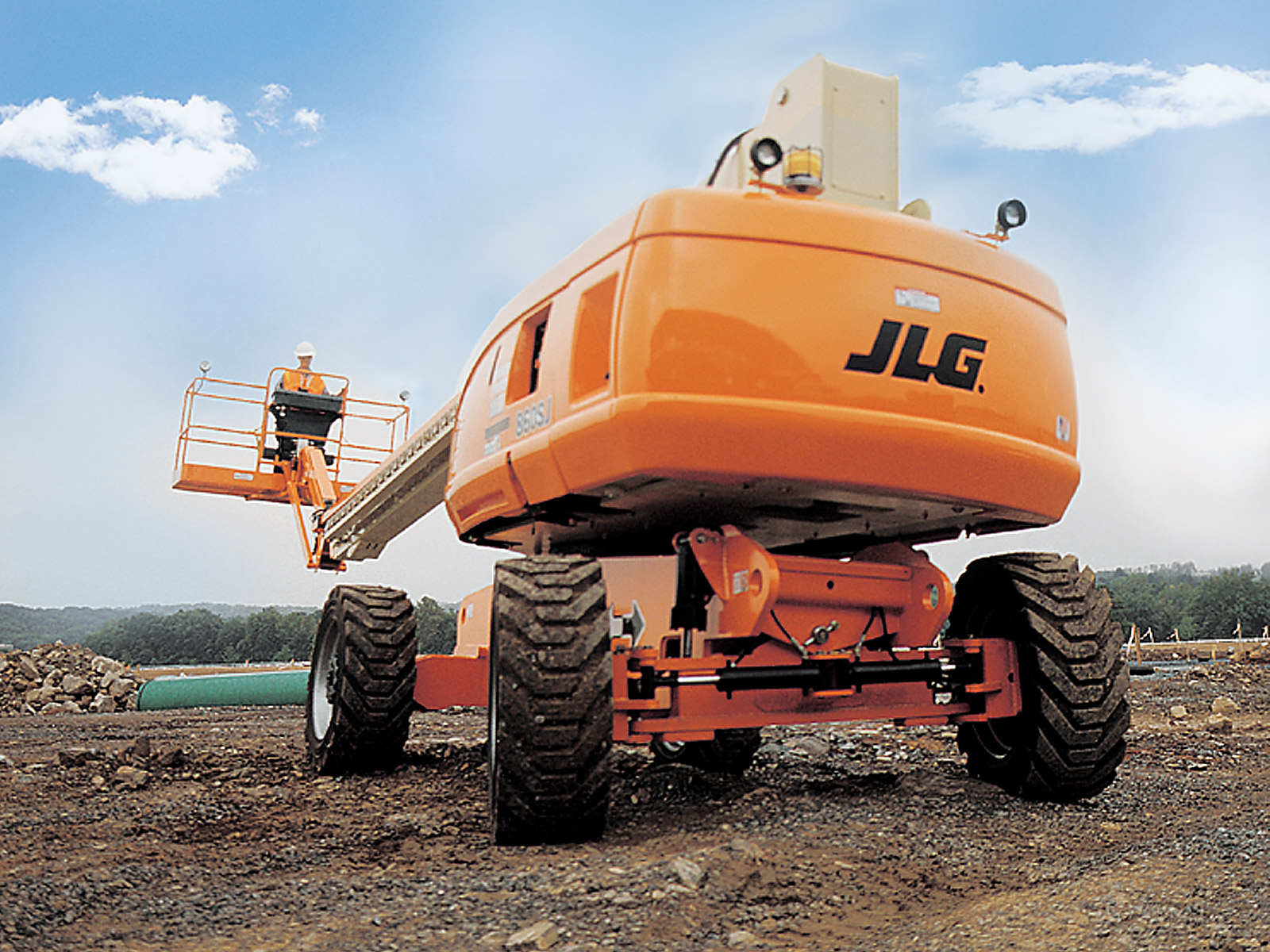

• Axle Oscillation 0.20 m
• Turning Radius – Inside 3.8 m 2WS
• Turning Radius – Outside 6.02 m 2WS
